Fuel

Diesel Pumps

Back

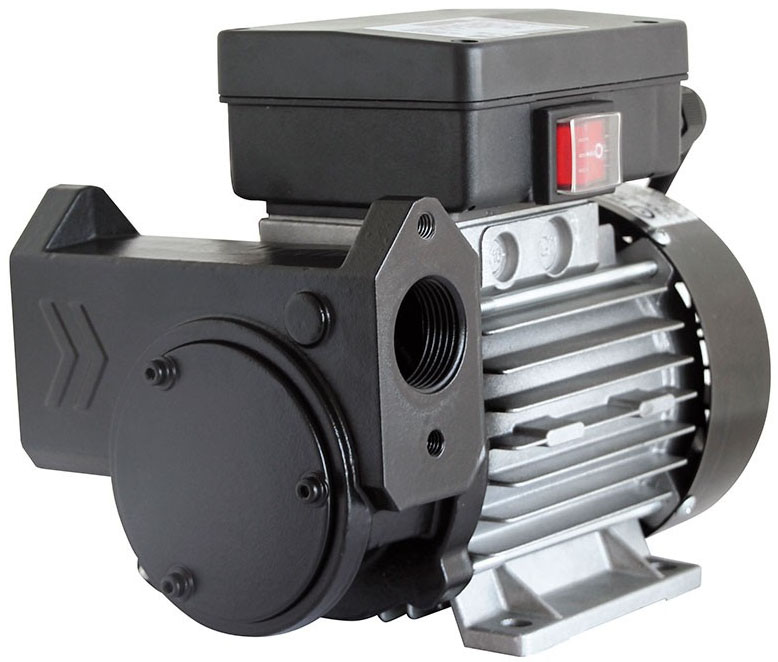

IRON-75 230 VAC Self-suction with blades · 0.5 kW · 75 l/min

Print
Liquids: Diesel Diesel
IRON-75 230 VAC 75 l/min
  • Self-suction - self-priming. Eccentric of self-adjusting blades
  • With recirculation bypass
  • Suction: 5m · Delivery: 30m
  • Free flow: 75 l/min
  • Consumption: 1.9-4.5 A
  • Motor: 0.5 kW 230 VAC self-ventilated 50/60 Hz single-phase with thermal protector
  • S1 Continuous duty
  • IP-55 Protection
  • 3.000 rpm
  • Connection through F1" (BSP) threads and flanges
  • It has built in a cleaning steel filter of 350 µm (micron).
  • ON/OFF luminous switch with IP-55 protection
  • 3 m electric cable with homologated plug
  • Anti-rust treatment
Size and weight (approx.):
  • Size: 146x225x185mm (length x width x height)
  • Weight: 8.5Kg
Optional
- F1'' aluminium flange kit
IRON-75 230 VAC

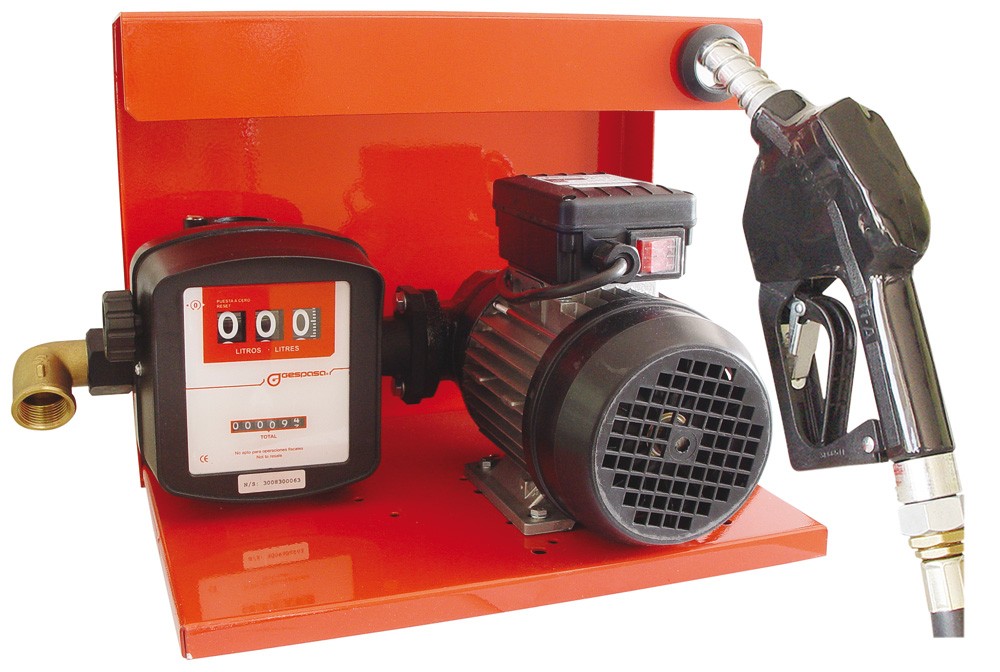

SAG-88 (0.37kW) 80 L/MIN · Pump wth flow meter
Liquids: Diesel Diesel

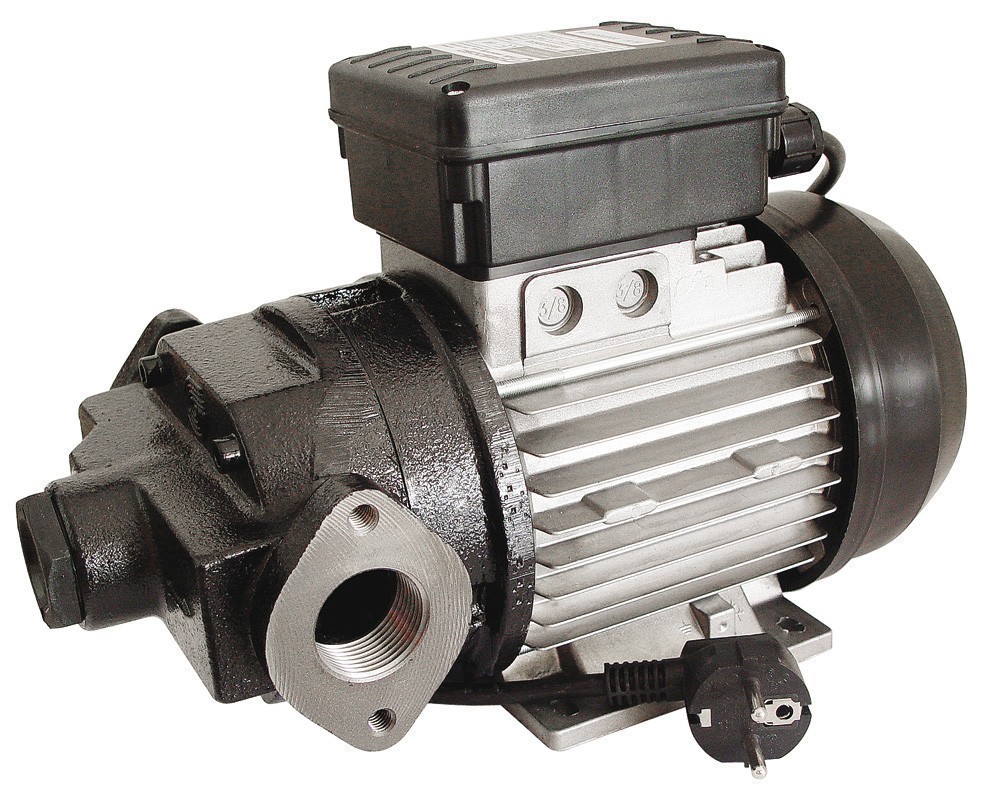

AG-88 pump (0,37kW) 230VAC + MG-80 mechanical meter
AG-88 (0,37kW) 230VAC + MG-80
AG-88 (0,37kW) 230VAC + MG-80 + Base nr. 4

AG-88 (0,37kW) 230VAC + MGE-80 electronic meter
AG-88 (0,37kW) 230VAC + MGE-80
AG-88 (0,37kW) 230VAC + MGE-80 + Base nr. 4

AG-88 (0,37kW) 230VAC + MGE-80 RI-97 electronic meter with preset and self-stopping
AG-88 (0,37kW) 230VAC + MGE-80 RI-97
AG-88 (0,37kW) 230VAC + MGE-80 RI-97 + Base nr. 4

* Hose and nozzle not included

Optional
- M1'' short union flange kit in PA + fibreglass
- M1'' long union flange kit in PA + fibreglass
- Stainless filter-sieve of 352 micron Ø33mm
- FUP-1 FF1'' GAS (BSP) filter of 352 micron
SAG-88 (0,37kW) 80 L/MIN · Pump with litre meter

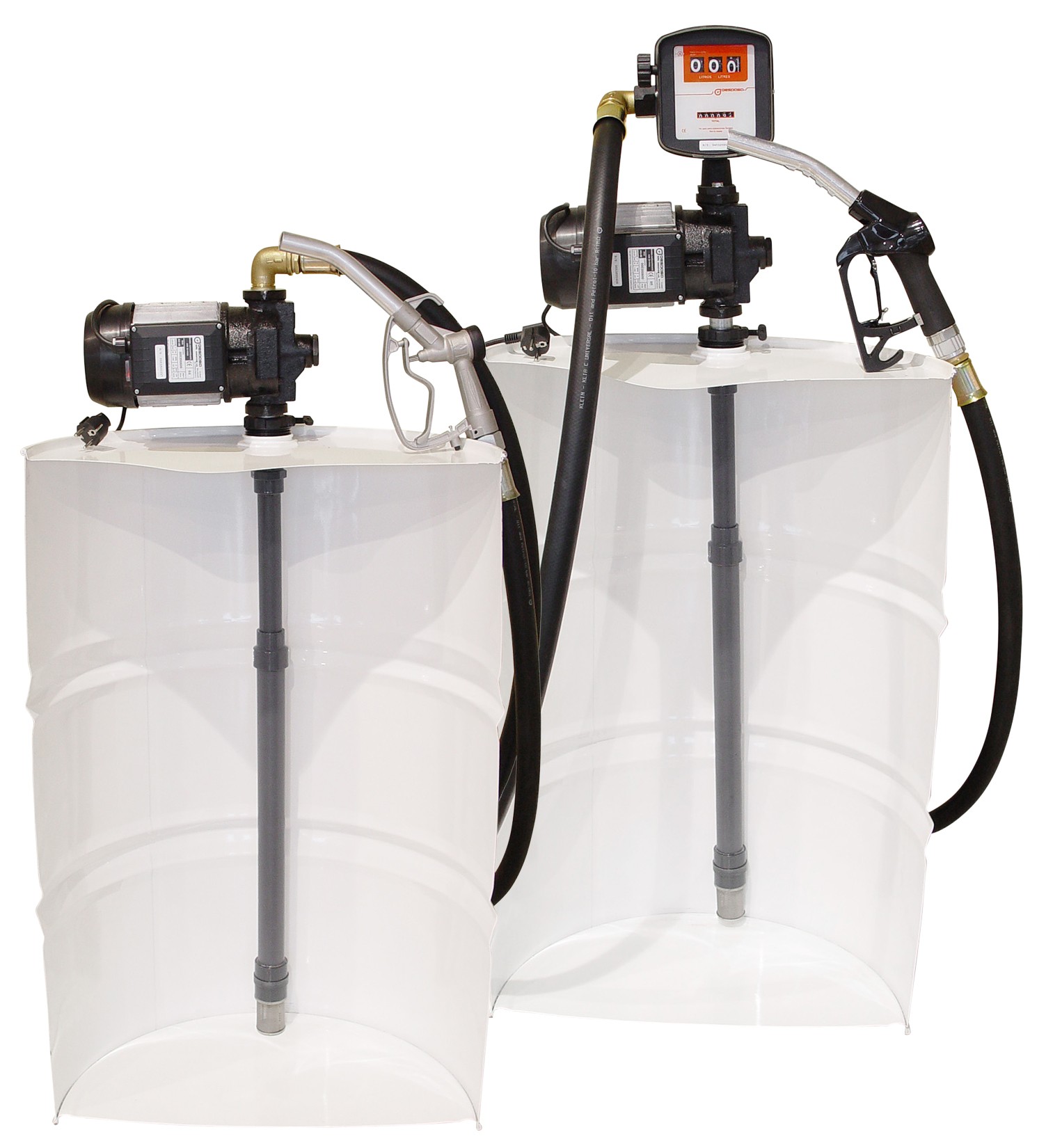

VERTICAL KITS WITH TELESCOPIC SUCTION TUBE AND AG-88 (0.37kW) PUMP
Liquids: Diesel Diesel

The vertical kits are equipped with:

  • AG-88 0,37kW 230VAC pump (with or without MG-80 mechanical meter)
  • PSF-040 manual nozzle or *PA-80 automatic nozzle
  • Accessories:
    • M1" F1 1/4" telescopic suction tube kit, height 1,90m with filter built-in
    • 4m anti-static delivery hose Ø25mm double layer, special type for diesel with adapters on both ends

*Swivel adapter included


KIT AG-88V (AG-88 0,37kW 230VAC + accessories + nozzle)
AG-88 0.37kW 230VAC + accessories + PSF-040 manual nozzle
AG-88 0.37kW 230VAC + accessories + PA-80 automatic nozzle

KIT SAG-88V (AG-88 0,37kW 230VAC + accessories + MG-80 mechanical meter + nozzle)
AG-88 0.37kW 230VAC + accessories + MG-80 + PSF-040 manual nozzle
AG-88 0.37kW 230VAC + accessories + MG-80 + PA-80 automatic nozzle
VERTICAL KITS WITH TELESCOPIC TUBE AND AG-88 (0,37kW) PUMP
