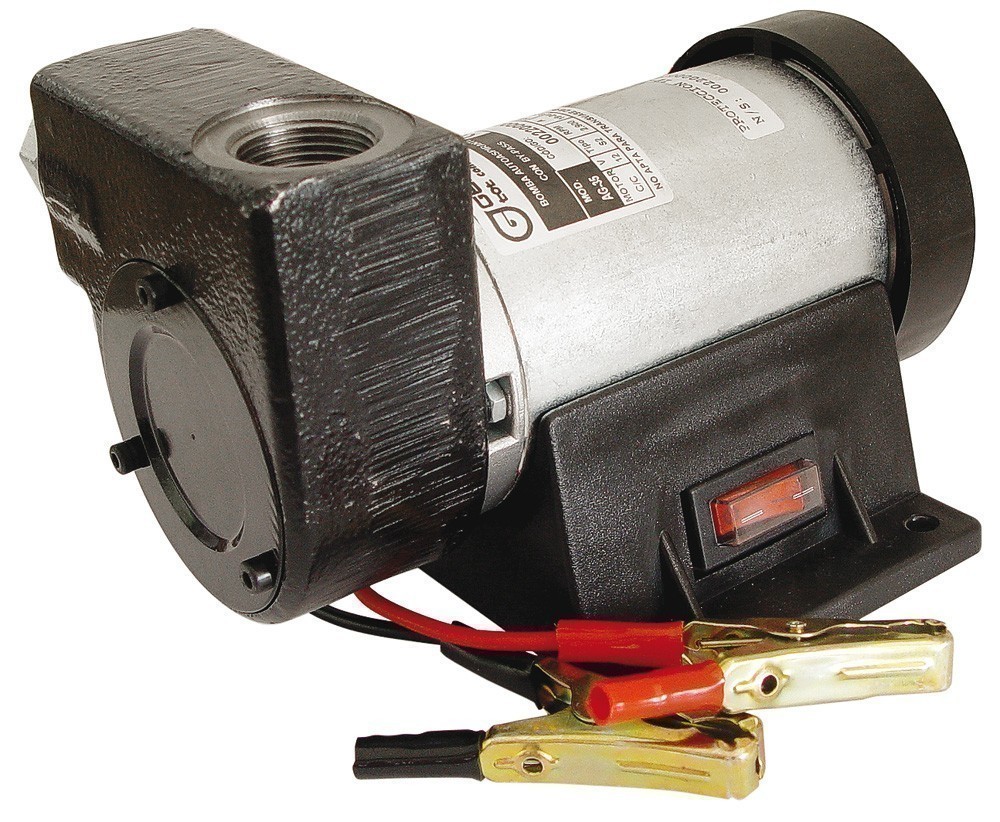

• Self-suction-self-priming. Eccentric of self-adjusting blades
• With recirculation bypass
• Suction: 2,5m · Delivery: 20m
• Free flow: 45-50 L/min
• Consumption: 18-24A (12VDC) and 9-17A (24VDC)
• Motor: 0,30kW (12 and 24VDC) self-ventilated, dust protection
• R.P.M.: 3.000rpm
• Connection through F3/4" threads
• Continuous duty
• 2m cable with clamps
• Stainless steel filter in the suction of 352 micron
• Luminous switch with IP-55 protection

• Size: 195x150x120mm (length x width x height)
• Weight: 4,30kg

* Hose and nozzle not included

• Size: 320x260x527mm (length x width x height)
• Weight: 12,4kg

• AG-35 12 or 24VDC pump
• PSF-040 · Manual aluminium nozzle with F1" swivel and curved end
• 4m antistatic delivery hose Ø19mm double layer, special for diesel, with adapters in both ends
• PP Lower filter with STAINLESS mesh
• 2 brackets 23x35
• 90° MF 3/4" brass elbow
• 3/4" PP adapter
• It is supplied with a printed box, with EAN-13 bar code

• Size: 347x350x165mm (lenght x width x height)
• Weight: 7,50kg

The horizontal kits are equipped with:

• AG-35 12 or 24VDC (with or without MG-80 mechanical meter)
• PSF-040 manual or *PA-60 automatic nozzle
• Accessories:
  • 3m antistatic delivery hose Ø19mm double layer, special for diesel, with adapters in both ends
  • 1,70m elbow hose Ø21mm special for diesel
  • M3/4" x 26PP Adapter
  • 2 brackets 23x35
  • PP lower filter

*Swivel adapter included

The vertical kits are equipped with:

• PSF-040 manual or *PA-60 automatic nozzle
• Accessories:
  • M3/4" F1" telescopic tube kit, height 1,90m, with filter built-in
  • 4m antistatic delivery hose Ø19mm double layer, special for diesel with adapters in both ends

  *Swivel adapter included
