MGE-80RI97·ELECTRONIC preset and automatic stop 10-90 L/MIN · ±1%

Print
Liquids:  Diesel Diesel   Urea Urea   Water Water

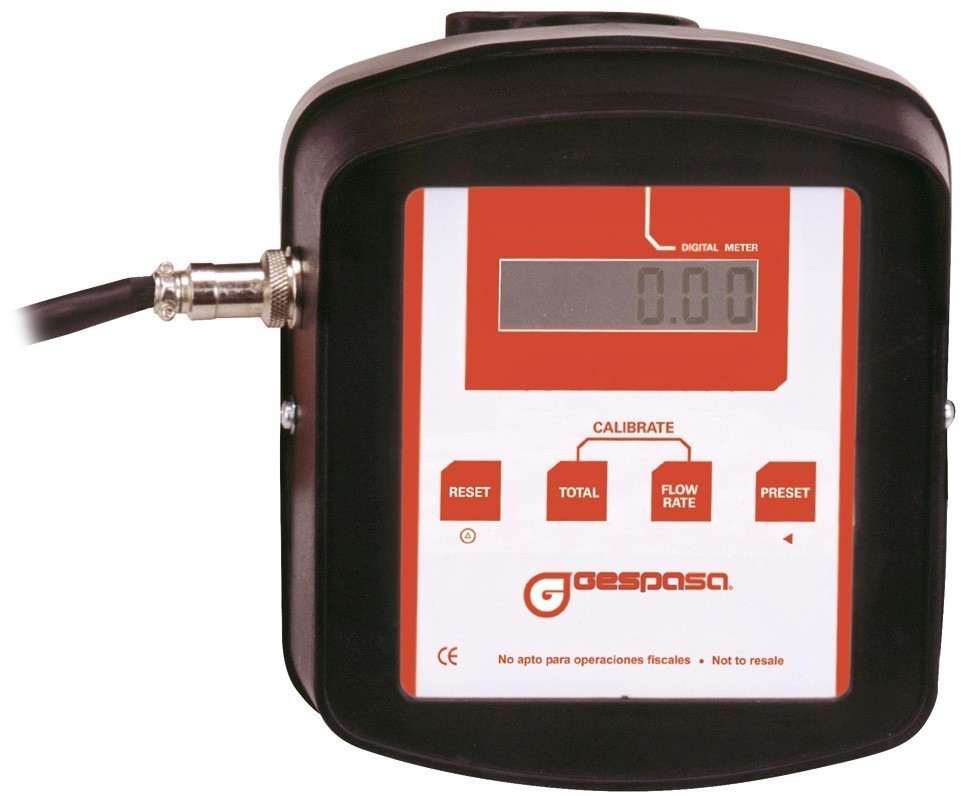

MGE-80 RI-97 · Electronic meter with preset and automatic stop
MGE-80V RI-97 · Electronic meter with viton joints, with preset and automatic stop
It has the same features as the MGE-80 electronic meter and apart the following ones:
  • Connection: 230VAC
  • With preset and self-stopping: the pumping kit automatically stops when it arrives at zero after supplying the preset litres.
  • It is supplied with male plug and 1m cable to connect the pump. It is also equipped with an exterior connection (female plug).
  • For private use, not suitable for fiscal operations
MGE-80RI97·ELECTRONIC
ACCESSORIES
Optional accessories
- Filter FUP-1 FF1'' GAS (BSP) of 352 micron
- M1'' short union flange kit in PA+Fibreglass
- M1'' long union flange kit in PA+Fibreglass

Special plastic flange with 50% of fibreglass to be adapted to our meters, both mechanical an electronic meters, to pumps and/or pipes. It is optionally supplied with STAINLESS filter-sieve of 352 micron to avoid the impurities entry in the meter interior.

When you made an order it would be necessary to indicate in which connection you want this flange. This flange cannot be removed because of its special adhesive fixation. Otherwise we are supplying the flange kit so you can install it in any of the meter connections.

- Filter-sieve of 352 micron Ø33mm
- MM1'' brass union
- MF1'' PA+fibreglass adapter with BSP short thread
- MF1'' PA+fibreglass adapter with BSP long thread
- NBR Ø24x3,5 joint
- MF1'' PA+fibreglass adapter with BSP short thread with STAINLESS 352 micron sieve
ACCESSORIES
