• The fuel dispenser is designed and manufactured for the fuel supply and it is equipped with a supply point. This kit has built-in an accuracy measuring system and a special electronics that shows the supplied litres and the supply amount.

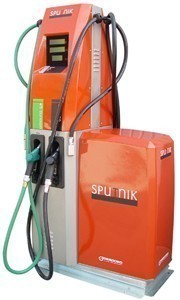

• The fuel dispenser is available in four different versions of chassis: Estilo, Tecno, SPUTNIK and Blue. The chassis can be made in stainless steel, carbon steel or fibreglass, according to each piece and version.
• The fuel dispenser has one or many hydraulic groups with model approval, composed of a pump with degasifier and one or two piston meters for each hydraulic group that guarantees an accuracy in the measuring of ±0,2%. Each meter has an encoder that transmits pulses to the electronics.
• The fuel dispenser also has one or some supply points into the same compact unit, which allows a best profit of the fuel dispenser interior space. Each one of the supply points is composed of a hose with a tensor that allows maintaining the hose picked up at any moment.
• It has one or two electronics. These are GESPASA mark, EM-1 model, and they have an hydraulic and electronic technology more adequate to get the required trustworthiness by our customers.
• It is suitable for service stations, cooperatives, transport companies, ...
• The electronics is composed of 3 displays that show:
  • Price per litre
  • Total amount
  • Supplied litres

Avant-garde electronics

• Luminous display of high size that makes easier the quantity vision;
• Minimum supplied amount presence of 15 minutes if the lights have gone out;
• Possibility of litre or amount preset;
• Three preset keys: x1, x10, RESET;
• Mechanical and Electronic totalizer;
• Communication protocol with controller/computer;
• Possibility of changing the fuel price form the own dispenser or a controller;
• High trustworthiness;
• The electronics can control up to 4 hoses;
• The electronics is installed into a watertight head.

Trustworthy and guaranteed accuracy meter

• Piston meter with electronic pulser with error control;
• Accuracy: 0,2% (5-80 l/min);
• Adjustment through a sealed wheel;
• Pulser of 2 channels with a resolutions of 100 l/min;
• Mechanical totalizer.

Hydraulic pump with gas separator

• Self-suction blade pump with air separator and a filter in the suction;
• Standard flow: 50-80 l/min
• Steel mesh of easy access and (clean and reused);
• Motor: 1kW S1 230/400VAC 50/60Hz three-phase EExd with ATEX certificate and IP-55 protection;
• Driving belt with automatic tensor.

Structure

• Main structure made of stainless lacquered-matt steel;
• Protective structure of the pumping kit and the electronics made of newest PRFV material.

Size: 1010x600x1900mm (longxwidexhigh)
