Micro-filters

FG-100G 5 MICRON · 105 L/MIN F1" BSP

Liquids: Petrol Petrol

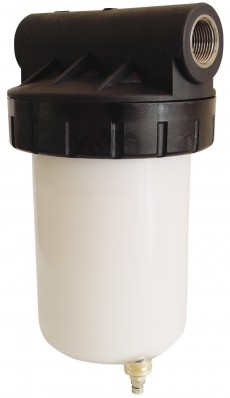

FG-100G · Translucid micro-filter of 2 litre capacity
  • Capacity: 2 litres
  • Filtration: 5 micron
  • Water decanter: by water repellent filtering paper, with water decanting of 93%
  • Transfer capacity: 105l/min
  • Upper filter housing: Plastic with F1" BSP metallic connections
  • FG-2G Housing: translucent white plastic
  • Inlet / Outlet: F1" BSP
  • Filtering capacity: 500.000 litres (normal conditions)
  • Installation: On the pumping kit suction
  • Manual drain valve in the vessel to empty the impurities
  • It is supplied with a picture box with EAN-13 bar code and with a key for replacing the cartridge
Size and weight (approx.):
  • Size: 175x280mm (Ø x height)
  • Weight: 1.85Kg
Optionals:
- Cartridge replacing key
- 5 micron paper filtering element spare kit + joints
FG-2G
