MGE-110HI · PRESET 5-110 l/min · ±0.5% · 1"

Liquids: Diesel Diesel  Lubricant Lubricant

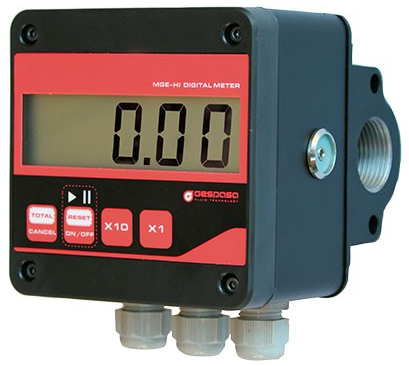

MGE-110HI · Electronic aluminium meter of oval gear with preset and automatic stop
  • Meter suitable for measuring diesel and lubricant, so as other liquids which are compatible with the aluminium and the meter specifications.
  • Private use



Technical data:

  • Aluminium body
  • Measurement through high accuracy oval gears
  • Digital Display of liquid crystal, not watertight. It must be installed an appropriate water protection.
    • 3 integers and 2 decimals: "999.99"
    • 4 integers and 1 decimal: "9999.9"
    • 5 integers: "99999"
  • Flow: 5-110 l/min
  • Accuracy: ±0.5 %
  • Max. pressure: 55 bar
  • Max. Temperature: 50 ºC
  • Min. Temperature: -10 ºC
  • Connection through F1" thread or flange
  • Voltage: 230 VAC
  • Calibration parameters and litre totalizer stored in a NON VOLATILE memory



Optional Functions:

RESTRICTED USE WITH KEY:

Optionally, the MGE-110 HI electronic meter has built-in an iButton reader which allows the restricted use to 20 users as maximum (iButton key) in the meter.

It is necessary to acquire a pack of keys + configuration change key:



Pack of 10-user keys

Pack of 20-user keys

Size and weight (approx.):
  • Size: 126x127x150mm (length x width x height)
  • Weight: 1.5Kg
MGE-110HI · PRESET
