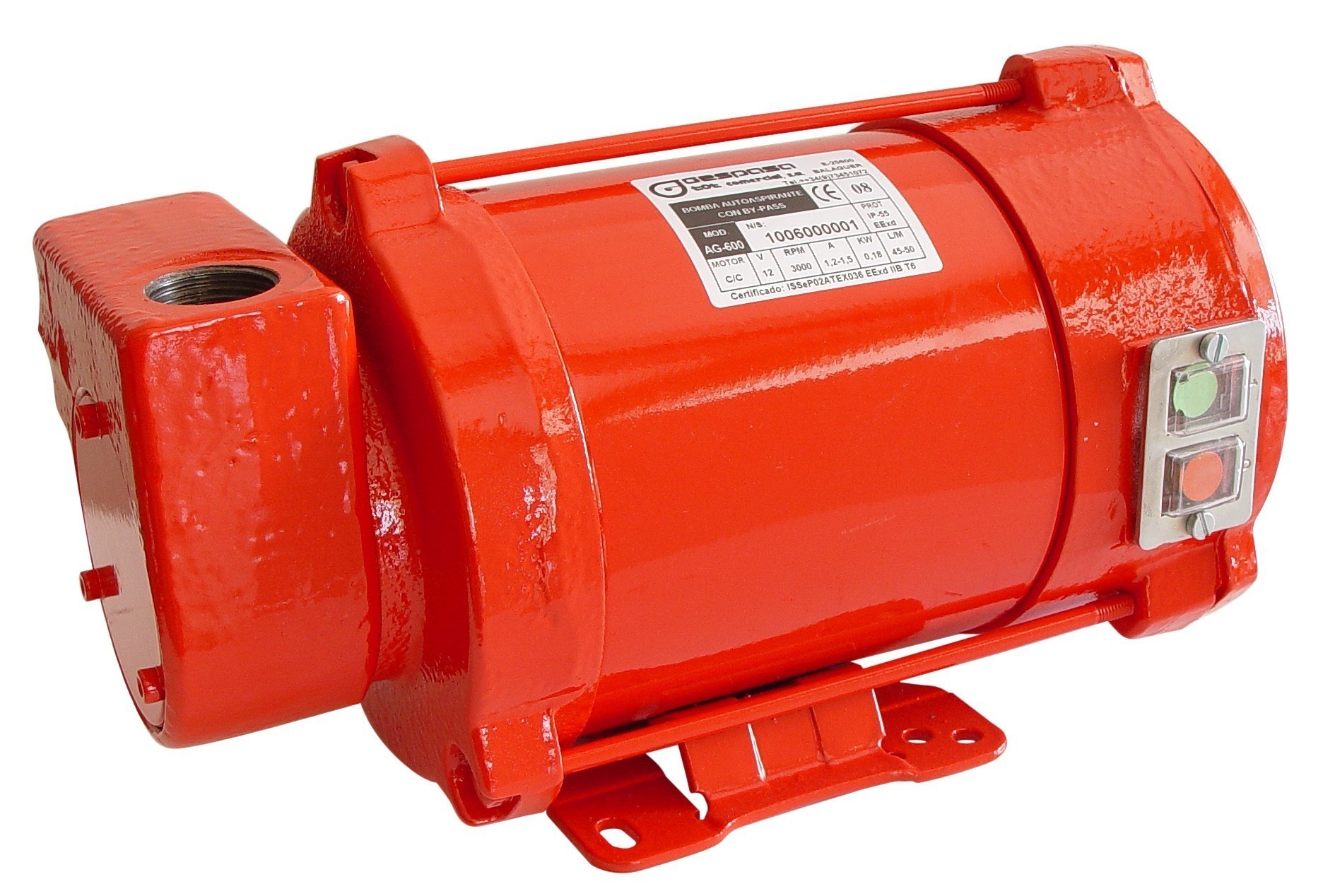

AG-600 12/24VDC Explosion proof · EExd 0,18kW · 50 L/MIN

Print
Liquids: Diesel Diesel  Petrol Petrol
AG-600 12VDC 50 L/MIN (Continous Duty rated)
AG-600 24VDC 50 L/MIN (Continous Duty rated)

This continuous duty pump is suitable for petrol, kerosene, diesel and oil transfer. Supply voltage is 12 or 24VDC.

Its use is suitable for agriculture, building industry, public works, Fuel industry, golf courses and aviation, etc.



Technical features:

  • Self-priming, explosion proof ATEX EExd
  • Eccentric with self-adjusting blades
  • With recirculation bypass
  • *Flow with free outlet: 50 l/min
  • Suction: 2.7m
  • Consumption: 25A
  • Motor: 0.18kW 12 or 24V DC EExd
  • With thermal cut-out protector
  • R.P.M.: 3000rpm
  • Operation temperature: 0ºC - +50ºC
  • Continuous duty
  • IP-55 protection
  • Certificate EExd IIB T4 ISSEP02 ATEX036
  • Thread connection: 3/4" (BSP)
  • ON/OFF switch
Size and weight (approx.):
  • Size: 265x165x155mm (length x width x height)
  • Weight: 11.2Kg
AG-600 12 or 24VDC
SAG-600 12 or 24VDC 50 L/MIN · Pump with litre meter
Liquids: Diesel Diesel  Petrol Petrol
Pump AG-600 12VDC + MG-80V mechanical meter with viton seals
AG-600 + MG-80V
AG-600 + MG-80V + Base nr. 3

* Hose and nozzle not included
Size and weight (approx.):
  • Size: 400x300x527mm (length x width x height)
  • Weight: 19Kg
SAG-600 12 or 24VDC 50 L/MIN · Pump with litre meter
