SPILL CONTAINMENT

Print

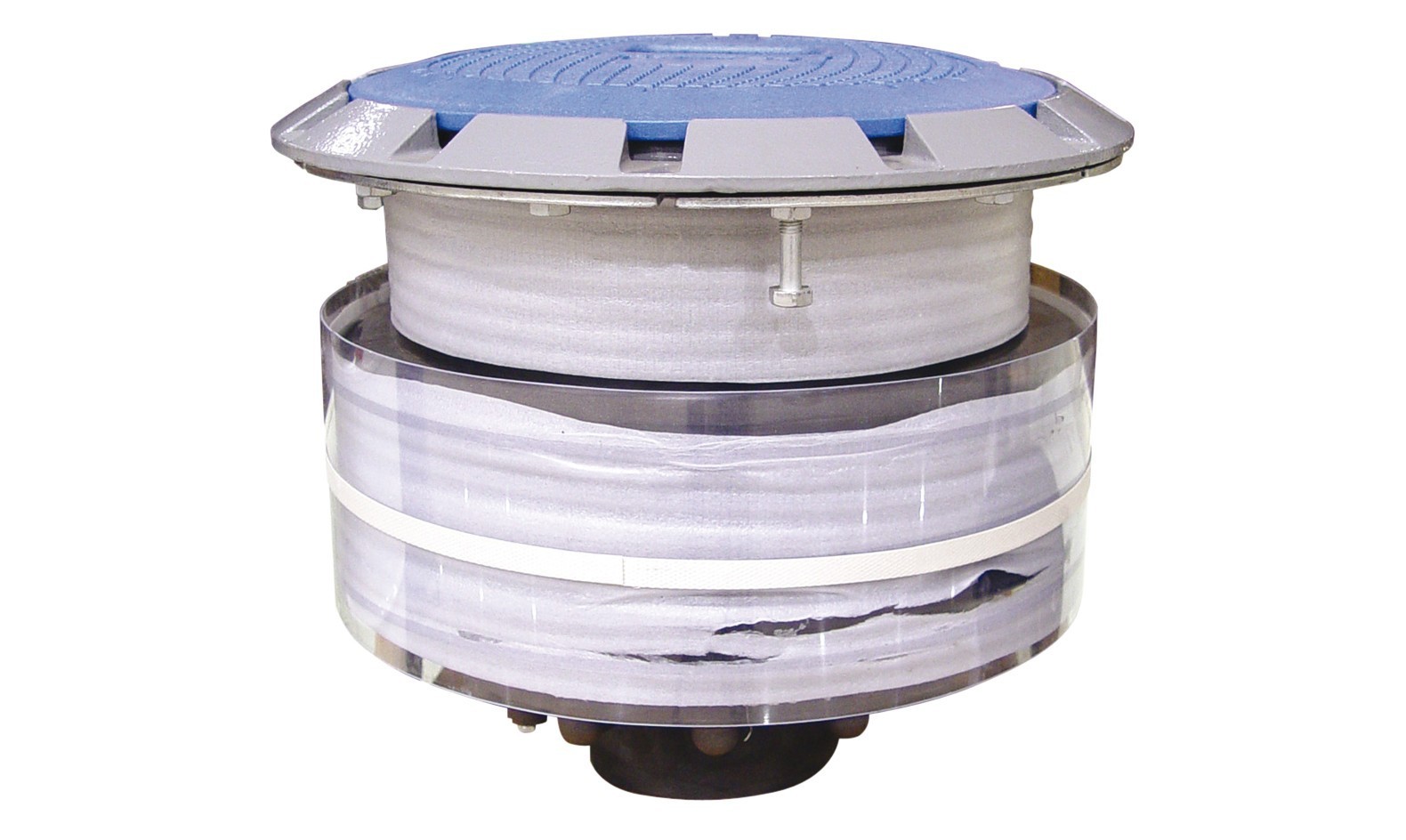

SPILL STOP CONTAINERS WITH STEEL COVERS
  • The spill stop:: tank container is designed to prevent product spilingl near fill connections and vapour outlets in below ground storage tanks during filling operations
  • It helps to prevent soil contamination and ground water pollution.
  • Easy installation. Its flexible structure allows a good adaptation in all type of terrain
  • It allows the product to drain back into the buried tank.
  • Capacity: 19 litres
4'' spill container with Ø360mm steel cover
4'' spill container with Ø410mm steel cover
Materials:
  • Cover: cast iron
  • Mounting ring: Cast iron
  • Bellow: Polyethylene
  • Base: Compound fiber
  • Clamps: Stainless steel
  • Seals: Buna-N
SPILL CONTAINERS WITH STEEL COVER
SPILL CONTAINERS WITH FIBER COVER
4'' spill container with Ø360mm fiber cover 808313001G
Materials:
  • Cover: polyamuide with fibreglass
  • Mounting ring: Cast iron
  • Bellow: Polyethylene
  • Base: Compound fiber
  • Clamps: Stainless steel
  • Seals: Buna-N
SPILL CONTAINERS WITH FIBER COVER

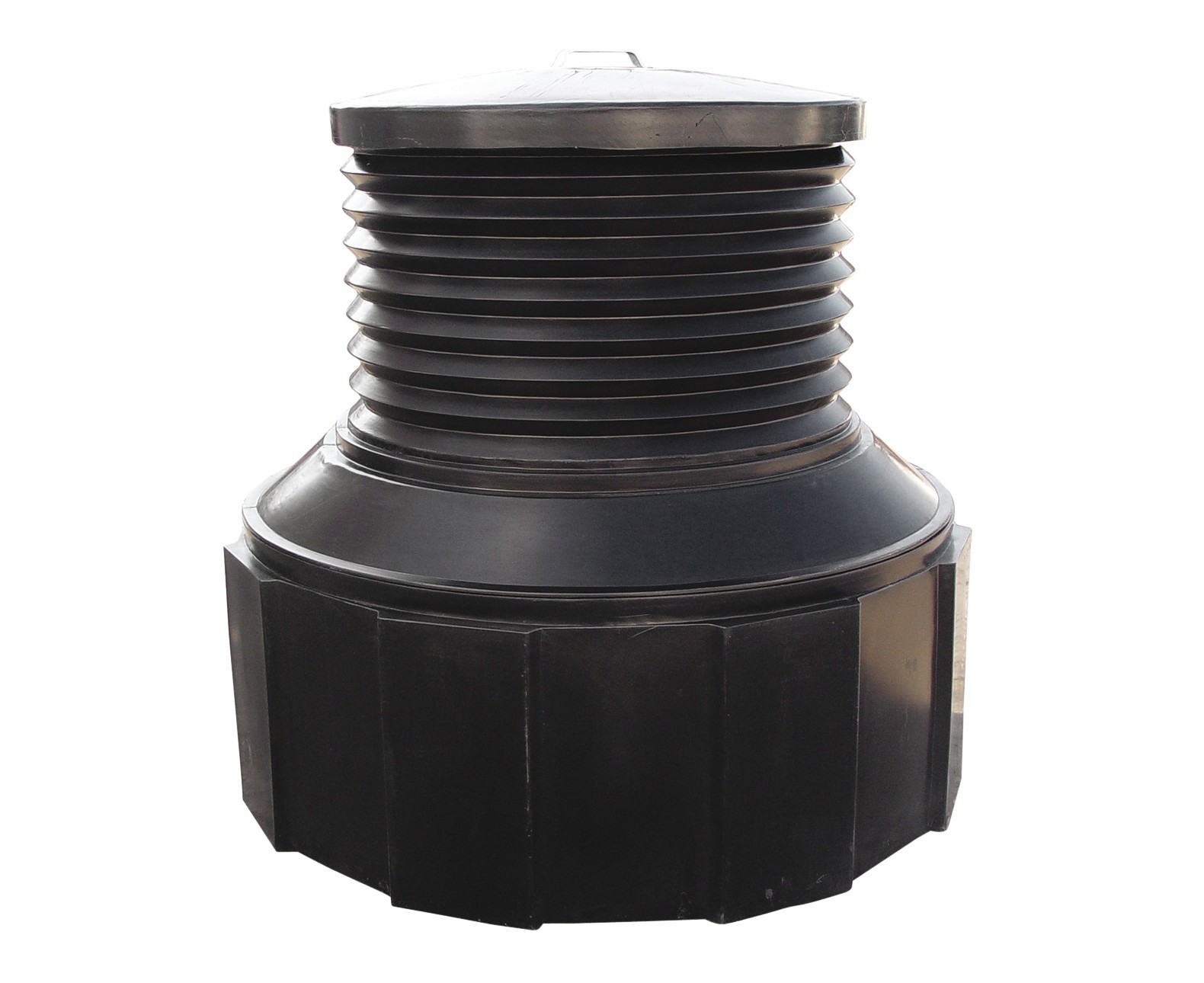

MANHOLE CONTAINERS
Manhole container

Size (approx.): length: 1225mm - top diameter: 820mm - bottom diameter: 1165mm

Weight (approx.): 55Kg
PLUS manhole container


Size (approx.): length: 1500mm - top diameter: 820mm - bottom diameter: 1165mm



Weight (approx.): 65Kg
  • This fuel tank chest allows to install pumps, valves and other type of equipment that could be necessary for the connection of the tank with the supply kit
  • It is composed of two pieces: base and neck, joined by a ring that assures its total sealing
  • Material: polyethylene
  • Colour: black
  • Optionally it has flexible bulkhead fitting to make easy the cabling pass
MANHOLE CONTAINERS
