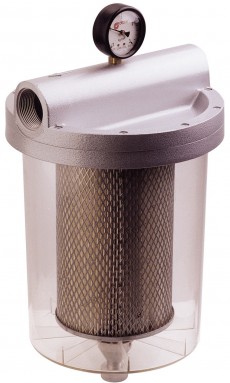

FG-10 · Transparent filter of capacity 10 litres
|
|
- It is suitable for a trustworthy microfiltration, with the 5 micron water-repellent system (water separation).
- We can see the amount of the inner liquid through the transparent vessel. The polluted fuel and the impurities can be extracted through the manual lower valve, that are kept between the filtering cartridge and the transparent vessel.
- This filter has been made for the diesel, petrol, kerosene and hydrocarbon liquids in general microfiltration.
- EASY cleaning. It is only necessary to open the manual lower valve.
Technical data:
- Capacity: 10 litres
-
Filtration: 5 micron (with water separation at 93%)
- Flow: 210l/min
- Filter cover: aluminium casting
- Transparent vessel: PA + fibreglass
- Inlet / Outlet: F1 1/2" GAS (BSP)
- Vacuum gauge: -1 +3bar
-
Manual lower drain valve to empty impurities
-
Filtering capacity: 1 million of litres (normal conditions)
- Installation: on the pumping kit suction
- Automatic degasifier
| |
Size and weight (approx.):
|
- Size: 260x435mm (Ø x height)
- Weight: 8Kg
| |
Optional:
|
- 5 micron paper filtering element spare
|
|
