BREAKAWAY VALVES

Print

The breakaway valves are designed to be installed in fuel supply hoses and they will be separated when there was a strong pull.

The double seat valve automatically stops the fuel flow, limiting any fuel spillage and protecting the supply kit.

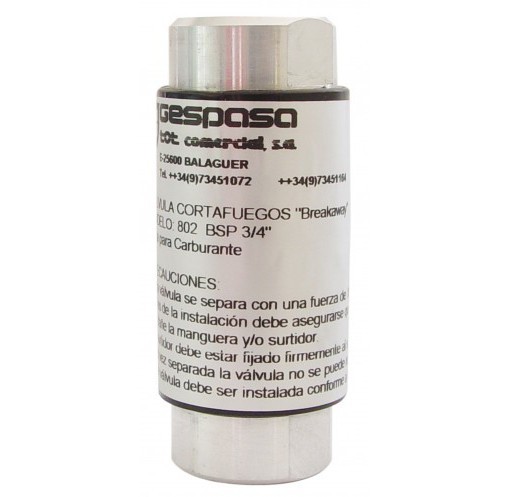

802 breakaway valve
804 breakaway valve
  • Body: aluminium
  • Main seals: viton
  • Main spring: stainless steel
  • Guide and poppet: POM
  • Protective sleeve: PVC
The valve is designed to be replaced after the separation
  Connection threads
 Flow Weight
802 BSP 3/4" x BSP 3/4" 0-60 l/min 230gr
804 BSP 1" x BSP 1" 0-120 l/min 320gr
